70 Megapixel 4K HD Industrial Microscope Camera Type-c interface

 36,000  37,000


70 megapixel 4K HD Industrial Microscope Camera Type-c interface connects the display and the computer to the output at the same time

Youtube Video link : https://www.youtube.com/watch?v=4EfQH6UGW0M

MP 70
sensor IMX334
sensor volume 1/1.8
pixel size 2.0 * 2.0μm
appointment 3840*2160
frame rate 3840*2160 @ 30FPS 1920*1080 @ 120FPS و 60FPS
How to store images TF card + UVC
Video 3840*2160 @ 30FPS
exposure time 0-33 ms
exposure automatic and manual
white balance Auto/manual/one key
the color Standard, black, tan
mirror settings Horizontal + Vertical, Horizontal Mirroring, Vertical Mirroring
Gridlines Support 10 groups of horizontal and vertical lines, optional colors (blue, orange, transparent, black, white, red, green), font can be moved, font width can be set
picture 16:9 ، 4:3
hash mark mm, um, inch, mil, cm can be set
computer programs KOPPACE-VIEW (image, video and metering support)
operating temperature 0-60 ℃
storage temperature -20-85 ℃
Volume 45.5*42*42mm
the weight 0.11 kg
power supply DC 5-12V

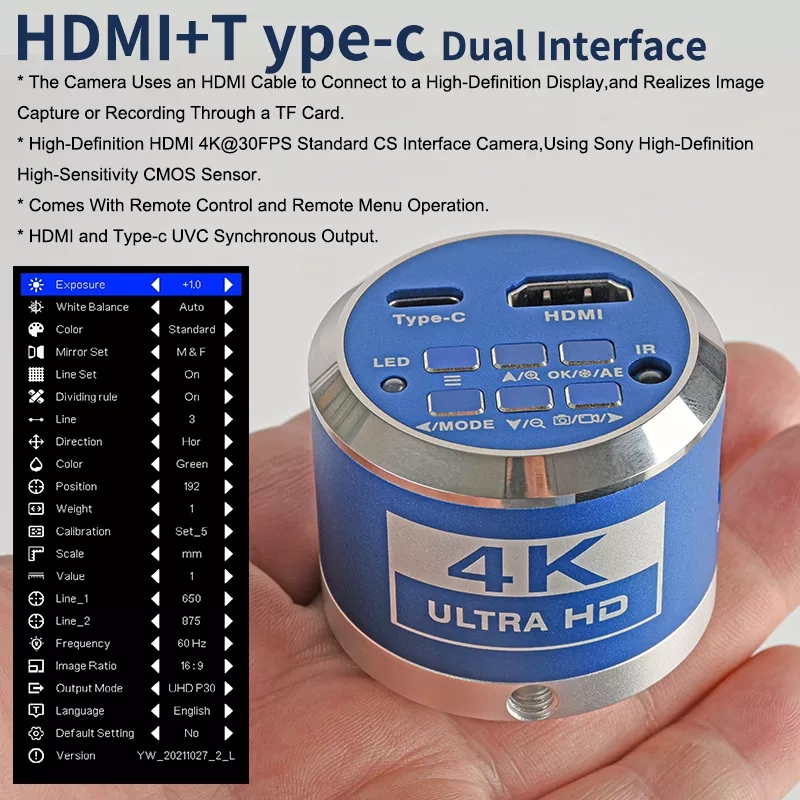

*4K HD Industrial Microscope Camera uses an HD cable to connect to a high-definition monitor, and realizes taking pictures or recording through a TF card.
* High-definition 4K @ 30FPS standard CX camera interface, using Sony high-definition high-sensitivity CMOS sensor.
* Comes with a remote control and remote menu operation.
* HDMI and Type-c UVC synchronous output.

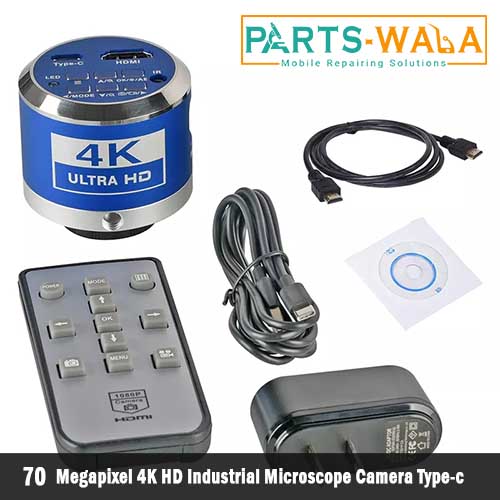

packing list:1, 4K HD microscope camera *12, high-definition line * 13, camera power adapter * 14, CD drive * 1
5, remote control * 1Notice:
1, this product is HD output, and it is connected to the monitor through HD. It can also be connected to a computer through the Type-c interface. You need to download it. HDMI and type c can be output at the same time.
2, this product is a 4K high-definition camera, and it must be equipped with a 4K high-definition screen to achieve the best result.
