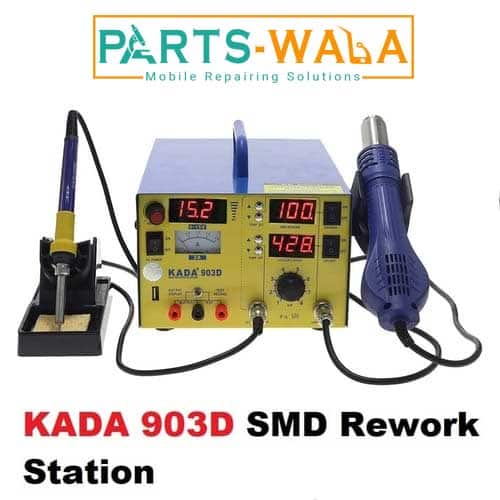

KADA 903D Heat Gun soldering iron and DC power supply 15V 2A Mobile repair BGA rework station


9,800

KADA 903D Heat Gun soldering iron and DC power supply 15V 2A Mobile repair BGA rework station

Kada 903D is suitable for desoldering and soldering of various components, such as: SOIC CHIP QFP PLCC BGASMD components. (especially suitable for the desoldering of mobile phone cables and cable holders).For heat shrinking, drying, paint removal, degreasing, thawing, preheating. Applicable to the power supply during mobile phone maintenance, test the voltage of the circuit board, check the strength of the mobile phone RF signal.
Features Of KADA 903D 3inl hot air Solder Station:
. The processor control high stability of work. extending the life of heating elements, energy saving
. It remembers the last set temperature
. Comfortable portable handheld and the Digital LED display.
. Microcomputer control,warming-up quickly.
. Adjust the airflow and temperature control rotation.
. When the temperature is less than 70C, it can stop rotation automatically.
. Intelligent system that could alarm, Fault detection automatically.
. This product is ESD-protected.
. High-quality resistance good for long service life
. Shell using alloy material, elegant appearance.
. Intelligent detection and cool airflow features.
. Green lines and high-quality silicone body heat good for extend life and save power.
Specifications Of KADA 903D 3 in I multi-function Hot Air Soldering Rework Station + Soldering Iron + Power Supply:

1. Model: 903D
2. Power: 800W
3. Size: 250 X 185 x 175mm
4. Weight: 3.85kg
5. Working environment: 0-50°C
6. Storage environment: -20-80 C
7. Storage humidity: 35%-45%
Air Gun part:
1. Airflow type: brushless fan soft wind
2. Merry 120L/min
3. Temperature range: 100 C — 480 ° C
4. Temperature stability: ±1 °C
5. Display form: digital display
Soldering Iron part:
1. Temperature range: 200 O C — 480 ° C
2. Temperature stability: ± 2 ° C
3. Ground voltage: <2mV
4. Grounding resistance: <2OHM
5. Power section Output voltage: DC 0V-15V
6. Load stability: <0.01 ±2MV
7. Temperature coefficient: <300ppm/°C
8. Ripple noise: <1 mrms (effective value)
9. Protection current: 1A-3A
