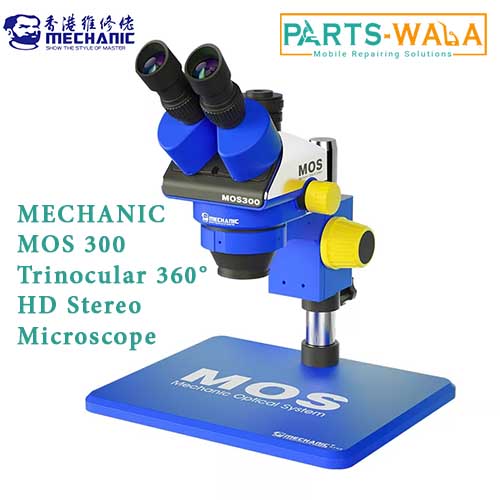

MECHANIC MOS 300 Trinocular 360° HD Stereo Microscope

Availability:

Available on backorder


55,000 65,000

Available on backorder

MECHANIC MOS 300 Trinocular 360° HD Stereo Microscope
Features:
MECHANIC MOS 300 Trinocular 360° HD Stereo Microscope

The high-definition optical objective lens, precision process manufacturing, high-definition coated objective lens
. Pure copper material lens barrel, no glare, clear picture, do not miss every small detail
. WF1OX/22 eyepiece, binocular diopter can be adjusted ±5DP, making binocular observation easier.
. With the high field of view wide-angle eyepiece, standard WF1OX/22MM, it is still convenient to wear glasses for observation.
. O.6-4.5X continuous zoom, optical system, large magnification continuous zoom, sharp imaging, and no distortion, very high definition, can correctly focus on samples with large uneven surfaces, so as to obtain a three-dimensional image.
. The focusing gear rack is made of metal material, which is durable and accurate with the magnification, making the image clearer.
. CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting
. True trinocular high-definition display, matched with 4K high-definition camera display, eye-clearing observation is synchronized with the screen display content, high-definition large screen without smear (only the package includes the high-definition camera, the bare metal does not include the high-definition camera)
. The mirror body can be adjusted freely, and the microscope body can be adjusted 360°, freeing up the workbench and not affecting other operations.
Specification: MOS300-B11:
. Observation head: 45decline, 36orotate, pupil distance 54—76mm; bilateral visual adjustment ±5
. Adjustable eyepiece: Standard: WF1OX22, high angle wide-angle eyepiece provides convenience for observers wearing glasses.
. Optional eyepiece: WFlOx22mm, WF1 5×1 5mm, WF2OxlOmm, WF25x9mm, WF3Ox8mm
. Objective: O.6X—4.5X Zoom Range, objective magnification ratio 1:10,
. Auxiliary Lens: 03X, OE5X, O.75X, iX, t5X, 2X For option
. Magnification: Standard:6X—45X, optional and auxiliary lenses can be extended to 1.8X—90X continuous doubling
. Working Distance: 100mm
. Focus arm: 76mm Diameter, 32mm pole size
. Plate: Black/White plate
. Base: Bu column type large plate base.
. Outward Size: 200mm(W)*273mm(D)*280mm(H)
. illumination: Optional LED Illumination, see LED light source series diagram for details
