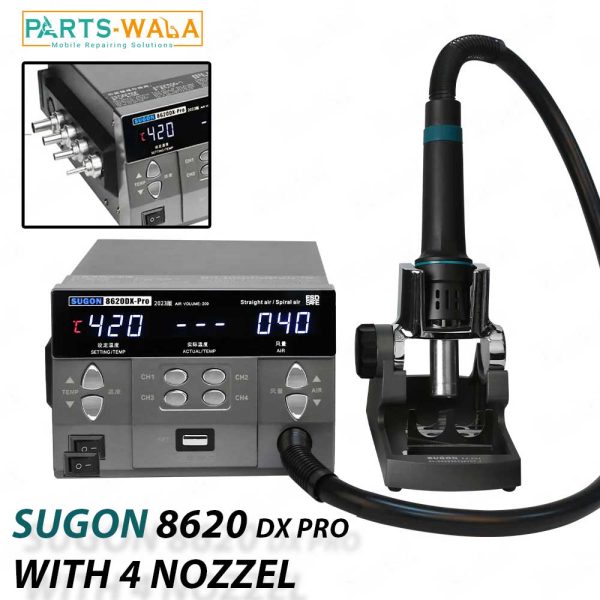

SUGON 8620DX PRO 1300W Hot Air Rework Station WITH 6 Nozzle

 45,000  50,000


SUGON 8620DX PRO 1300W Hot Air Rework Station WITH 6 Nozzle

online video link  https://www.youtube.com/watch?v=cwIYookGBiA


  • Four working channels: CH1, CH2, CH3, CH4, and The air volume and temperature of each channel can be set and stored.
  • It has a variety of protection functions and perfect button functions.
  • The convenient real-time operation, with magnetic switch control, the handle is placed in the hand The handle frame immediately goes to sleep.
  • With automatic sleep function, the parameters can be adjusted in the sleep state Set up.
  • Sensor closed loop, microcomputer zero-crossing trigger temperature control, high power, The temperature rises quickly, and the temperature adjustment is convenient and accurate and stable and is not affected by the air output.
  • Using a brushless vortex fan, the airflow is adjustable, the range is large, and it can be suitable Should be used for multiple purposes.
  • The system is equipped with an automatic large air volume cooling function to extend the life of the heating element, Protect the hot air handle.
  • Real-time ℃/℉ temperature display function.
  • Has the function of self-calibration of temperature.


  • Suitable for disassembly and soldering of a variety of components, such as SOIC, CHIP, QFP, PLCC, BGA, etc.
  • Suitable for heat shrinkage, drying, paint removal, debonding, thawing, preheating, disinfection, Glue welding, etc.
  • The air volume is adjustable, suitable for fields that require small air volume and large air volume heating together.
  • Suitable for lead-free hot air desoldering occasions.

Quick operation:

  • Temperature unit conversion
  • During use, press the “multi-function button” to use the warm
  • Degree “℃→℉” or “℉→℃”.Buzzer settings during use, press and hold the “multi-function button” for two seconds to turn off or turn on the buzzer sound.
  • Temperature calibration settings When the host is off, press and hold the “Multi-function button” for two seconds, then press Turn on the power switch to enter the temperature calibration setting status interface, press the air volume +- key to set the correct temperature, after setting, click “more Function key” exits the temperature calibration function and enters the working state.
