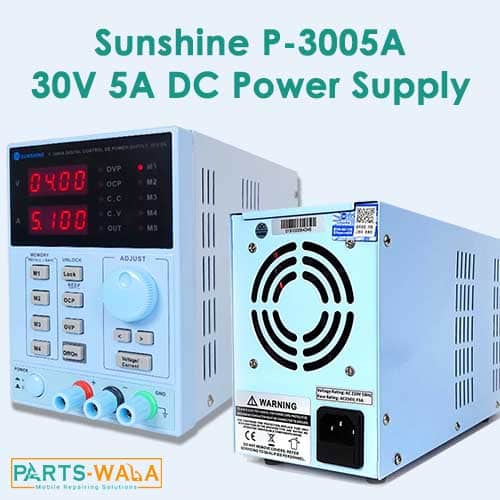

SUNSHINE P-3005A 0-30v 0-5a Digital Programmable Dc Power Supply For Mobile Repairing
Sunshine 30V 5A DC Power Supply P-3005A Digital Programmable Adjustable 4 Bits Digital Accurate display Laboratory Power Supply
- Model Number: P-3005A
- Input Voltage: AC 220V (110V need customize)
- Output Voltage: 0-30V adjustable
- Output Frequency:.
- Output Current: 0-5A
- product name: SUNSHINE P-3005A
- Display: 4 bits digital accurate display
- packing size:33*25*21cm
- Weight: 4.3kg
- Feature1: digital, programmable, memory store when power off, keyboard lock
- Feature2: low noise and ripple
- packing: paper box with inner foam
- Reset accuracy: 250℃+/-50℃
- Accurate and resolution: 10mv/1ma
- Ripple: 20-20M
Model P-3005A |
Voltage
range |
30V |
setting accuracy (250°C±50°C) |
Voltage | ≤0.5%+20m |
Current
range |
0-5A |
Current | ≤0.1%+10m | ||
Load effect | Voltage |
≤0.01% +2m |
Ripp(e(20-20M) | Voltage | ≤lmVrm$ |
Current |
≤0.02%+5m |
Current | ≤3mArms | ||
supply effect |
Voltage | ≤0.01%+3m | Voltage | ≤100ppm+l | |
Current |
≤0.02%+3m |
Current | ≤100 ppm+5 | ||
Output
resolution |
Voltage |
10mV |
Readback resolution |
Voltage |
10mV |
Current |
1mA |
Current |
1mA |
||
Output
temperature coefficient |
Voltage | l≤100ppm+10mV |
Reaction time |
Voltage
rise |
≤100mS |
Current | l≤100ppm+5mA | Voltage
drop |
≤100mS |
||
10% off the load | |||||
size and weight |
P-3005A X(4.36) |
