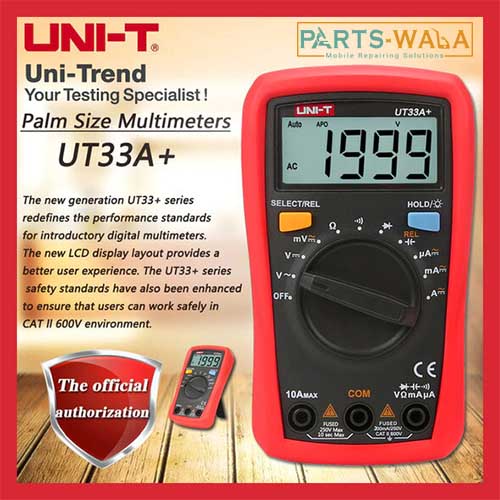

UNI T UT33A+ Mini Palm Size Auto Range Digital Multimeter Tester


UNI T UT33A+ Mini Palm Size Auto Range Digital Multimeter Tester

UNI T Palm Size Multimeter UT33A+ is multifunctional can measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity. This mini auto range meter UT 33A plus is portable in design, small, and can be put into a pocket, easy to carry. UT33A plus small pocket multimeter gives a stable performance, high precision, large LCD screen, low power consumption. There is buzzing and low battery indication, data hold, easy to read in this small multimeter.Features Of UNI-T UT 33A Plus Digital Mini Multimeter:

With plastic holsters and small and compact designs, it is suitable for family, school, smelt, communication, manufacturing, petroleum, national defense, electric power, chemical industry, etc.
UT33A+ is a fully functional, stable performance, low power consumption, safe and reliable, 3/4 palm-size digital multimeters.
Can be used to measure AC/DC Voltage, AC/DC Current, Resistance.
Come with a high degree of accuracy, LCD display, very easy to read.
10A AC DC Ammeter Resistance Capacitance Tester Auto Range 200mV~600V Voltmeter UNI-T UT33A+ Digital Multimeter UNI-T 200mV~600V Digital Multimeter.


Specifications Of UNI-T UT33A+ Multimeter:

Brand: UNI-T
Model: UT33A+
Color: Red & gray
Working environment: 0-40°
Storage environment: -10-50°
Monitor: 1999counts
Over range indication: “OL” display
Battery type: 2 x 1.5v AAA batteries( not included )
Backlight display: yes
Automatic shutdown: yes
Diode Test: yes
DC voltage range: 200mV/2000mV/20V/200V/600V
DC voltage resolution: 0.1mV/1mV/0.01V/0.1V/1V
DC voltage accuracy: ±(0.7%+3)/±(0.5%+2)
AC voltage range: 200mV/2V/20V/200V/600V
AC voltage resolution: 0.1mV/0.001V/0.01V/0.1V/1V
AC voltage accuracy: ±(1%+2)/±(0.7%+3)/±(1.2%+3)
DC current: 200μA/2000μA/20mA/200mA/2A/10A
DC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.01A
DC current accuracy: ±(1%+2)/±(1.2%+5)
AC current: 200μA/2000μA/20mA/200mA/2A/10A
AC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.1A
AC current accuracy: ±(1.2%+3)/±(1.5%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/10kΩ/100KΩ
Resistance accuracy: ±(1%+2)/±(0.8%+2)/±(1.2%+3)/±(5%+10)
Capacitance range: 2nF/20nF/200nF/2μF/200μF/2mF
Capacitance resolution: 0.001nF/0.01nF/0.1nF/1nF/100nF/0.001mF
Capacitance accuracy: ±(5%+5)/±(4%+8)/±10%
Item weight: 187g/6.61oz
Item size: 135 x 80 x 48mm/ 5.31 x 3.15 x 1.89in

The new generation UNI-T UT33A+ Palm Size Multimeter from UNI-T redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.
