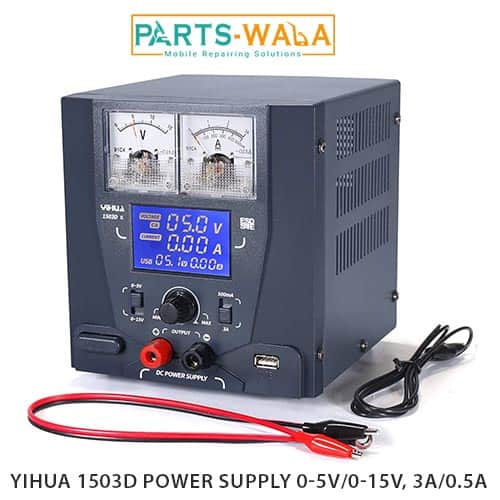

YIHUA 1503D Power Supply 0-5V/0-15V, 3A/0.5A Precise Adjustable DC Regulated Switching Power Supply with 5V 4A USB Port & Short Circuit

(1 customer review)

7,000

YIHUA 1503D Power Supply 0-5V/0-15V, 3A/0.5A Precise Adjustable DC Regulated Switching Power Supply with 5V 4A USB Port & Short Circuit, Over-Current and Constant Current

  • Precision & Accuracy – You’re assured of the industry’s leading standards in testing accuracy and adjustment precision. The 1503D-II’s testing result shows amperage of up to every 1mA (milliamps) and voltage of up to every 0.1V.
  • USB Port – The 1503D-II comes equipped with a stand-alone USB port to help you charge up mobile devices while you’re using the power supply. The port supports USB 2.0 and USB 3.0 quick-charge protocol so you can charge up your devices at a quicker rate.
  • 0.5A/3A Switch – The power supply is built with a selector switch for you to switch between 0.5A and 3A so you can quickly access the desired range of measurement.
  • 0-5V/0-15V Switch – On top of the quick-action selector switch for amperage, the station also comes with a voltage selector. You can select 0-5V or 0-15V for different applications; for example, you can conduct testing procedures on mobile devices (require less voltage) with 0-5V for improved safety.

The ability to conduct testing and power supply applications on a broad range of electronics, circuit boards, and components. You’re getting a safe, reliable, compact, and accurate bench power supply equipped with the most power-efficient power delivery design. You can use this power supply to a flexible range of applications, from smaller electronics to larger components. Its standards comply with the requirement of the enterprise, hobbyist, professional, lab testing usages.



Out of the box:

1 x 1503D-II Switch-Mode Bench Power Supply

1 x Pair of Crocodile-Banana Test Lead (positive & negative)

1 x Crocodile-Banana Test Lead

Performance

Yihua 1503D Power Supply Type: Switch Mode Power Supply

Output Power: 45W

Outputs: 0-15V

USB Output Voltage: 5V/9V/12V ±0.2V

Line Regulation: <=0.01%+2mV

Load Regulation: <=0.2%+2mV

Temperature Coefficient: <=300PPM/°C

Ripple/Noise: <0.2%Vrms(10Hz-1MHz)

Precision

Current: 0.4% + 10mA

Voltage: ±0.1V

USB Current: 0.4%+10mA

USB Voltage: 0.1V

Protection

3 Prong Grounded Plug: Yes

Constant Current Mode: Yes

Constant Voltage Mode: Yes
