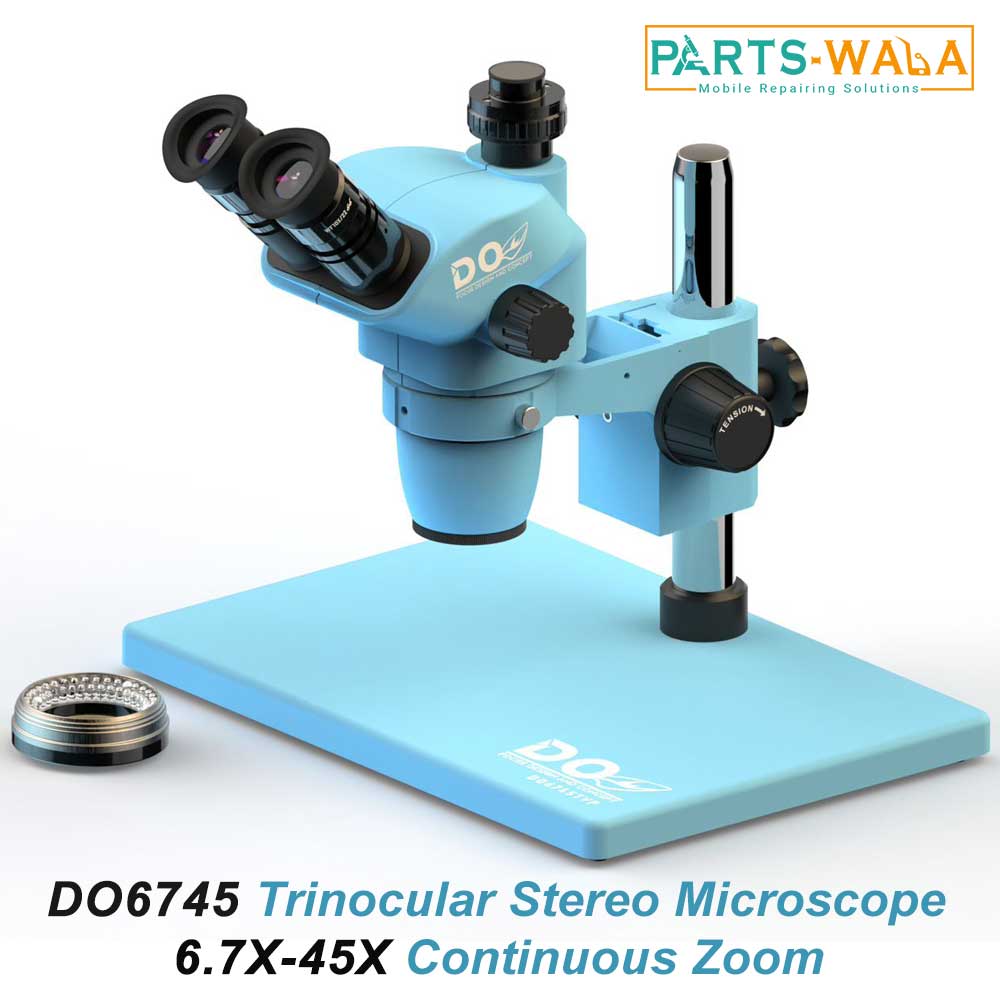

DO6745 Trinocular Stereo Microscope 6.7X-45X Continuous Zoom For Mobile Repairing


 78,000  80,000

Compare

DO6745 Trinocular Stereo Microscope 6.7X-45X Continuous Zoom For Mobile Repairing

DO6745 Trinocular Stereo Microscope High Quality Lens Industrial 6.7X-45X Continuous Zoom for PCB Motherboard Inspection Repair available in pakistan

Product Specification :

  • Item Name: Trinocular Stereo Microscope
  • Brand: DO
  • Model: DO6745
  • Magnification: 6.7X-45X
  • Eyepiece: High Eye Point Large Field Eyepiece WF10X/22mm (30mm)
  • Zoom Objective: 0.67X-4.5x Continuous Zoom,The Objective zoom Ratio is 6:7:1,To Ensure The Parfocality Of the Image Plane
  • Working Distance: 100mm (Effective Distance), Select Auxiliary Objective, Which Can Be Extended To 30mm-287mm
  • Auxiliary Objective Lens: 0.5X/165mm
  • Observation Head: 45* Tilt,360* Rotation,Interpupillary Distance 54-76mm,Bilateral Diopter Adjustment (+5)
  • Focusing Bracket: Inner Diameter 76mm Column Aperture 32mm
  • Base: B3 Base
  • Lighting: Option Various LED Ring Lights
  • Dimension: 200mm(W)X273mm(D)X240mm(H)
  • Column Height: B3 Base Column Height-260MM
  • Standard Size Base : 260*375MM

*DO-6745 Series Zoom Stereo Microscope is fully coated optical system with super high resolution.
*It is characterized by brand-new optical design, the best reproduction and true color image. Once brought in focus, image remains clear and sharp throughout the whole zoom range.
*It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
*The flat field parfocal zoom objectives provide continuously variable magnification from 3.35X to 270X depending upon the eyepiece and auxiliary lenses used.

Weight 5 kg
