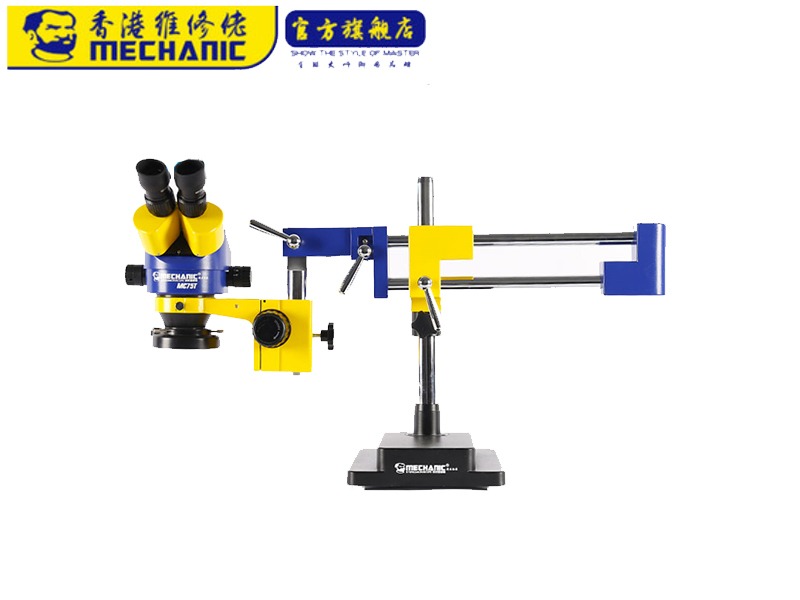

Mechanic MC75T-L2 Microscope Industry Level Moving Base


Mechanic MC75S-L2 Microscope Industry Level Multidimensional Moving Base Microscope

microscope for mobile repairing in pakistan

Boom stand base is professionally design platform which is used is mostly when more than 1 person working on a table and need rotational platform for easily access the microscope and work accordingly to requirement.

This is Mechanic L2 stand also known as Boom stand.

Microscope Feature:

  • 7X-45X zoom magnification power with crisp sharp images
  • Model Mechanic Mc 75T
  • With LED Light, Continuously adjustable
  • With Display
  • With HD Camera Option, record every detail.
  • Widefield of view
  • Sturdy all-metal pillar stand
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Large working distance
  • Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Adjustable interpupillary distance
  • Adjustable bracket, lifting range:50mm; easy to operate
  • Binocular Head, 45° inclined, Interpupillary Adjustment 54-76mm
  • Eyepiece:WF10X/20mm High Eyepiece
  • Effective distance: 100mm, the use of auxiliary objective lens can be extended 26mm-287mm
  • Auxiliary objective lens: 0.5X / 165MM 1.5X / 45MM 2X / 30MM (not include)
  • Magnification:7X-45X


LED Light

  • Diameter size: 60mm
  • Outer diameter size: 94mm
  • Output voltage: AC90-240W
  • Maximum output power: 4.5W
  • Number of bulbs: 56
  • Brightness of each bulb: MAX3500 mcd
  • Maximum light: 60000 lux
  • Working distance: 40-160mm
