SUGON T36 Lead-free 1S Rapid Heating 300W High Power Nano Soldering Iron Tips For Precision BGA PCB IC Welding Repair

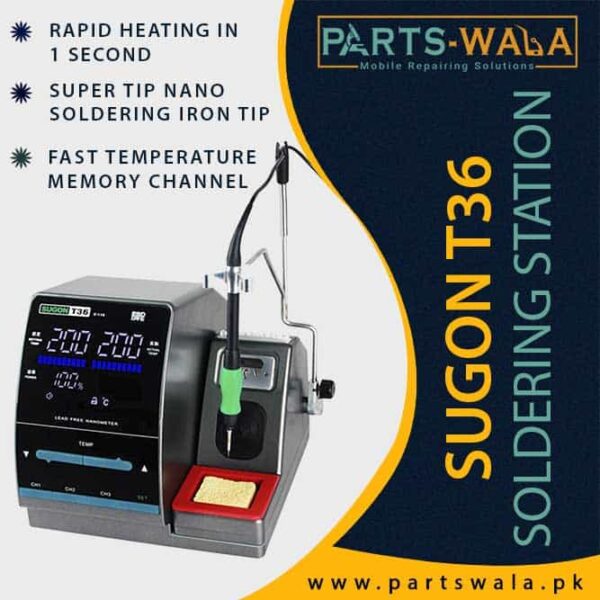

SUGON T36 Nano Soldering Station 1S Rapid Heating With JBC Soldering Tip For Integrated Circuit Component Welding Repair
Input voltage: AC 220V 50/60Hz
Temperature range: 200? – 450? / 232°F – 842°F
1. Sugon t36 Super rapid heating experience 1 second directly to set temperature Compared with T26, it heats up faster, more stable and can increase by half
2. Sugon t36 Super tip nano soldering iron tip C115 straight tip nano soldering iron tip is used for research and development, maintenance and other aspects, even when using a microscope, The short distance from the tip to the soldering pen also provides maximum control
3. Sugon t36 Fast temperature memory channel 2 seconds to melt tin, 1 second to warm up The temperature error can be set to plus or minus 1 degree for special welding of small solder joints
Attention: Turn off the power and avoiding damaging PCB during unplug or plug in the soldering iron handle
Plugin the soldering iron handle to the proper host socket.
Installation heating element.
Place the soldering station and hang the soldering iron handle on the bracket.
Make sure the power cord is plugged correctly.
Turn on the machine, the display window shows: “—“, it is on standby mode.
Temperature setting and storage:
Press ? the button once, the temperature window will show the set temperature to up 1?. hold ? the button for at least one second, the set temperature will heat up rapidly until up to the set temperature you did set.
Press ? the button once, the temperature window will show the set temperature to down 1?. hold ? the button for at least one second, the set temperature will cool down rapidly until down to the set temperature you did set.
After parameter data is set, keep hold the CH1 button to up or down the temperature and save it. similarly, keep hold CH2 or CH3 button to set the storage temperature and save them.
Do bring out the memory temperature, press the CH1 button (less than 1 second), and bring up the saved data, similarly CH2 or CH3 to bring up the memory data as well.
Model: SUGON T36
Power Consumption: 85W
Input Voltage: AC 110V / AC 220V 50/60Hz
Range of Temperature: Decide by working mode(200℃-450℃ / 392°F-842°F)
Temperature Stability: ±2℃/Without air flow and no load
Tip to Ground Resistance: <1Ω(DC)
Tip to Ground Potential: <25mV(True RMS)
Short press SET button once to switch ℃/°F display
Long press SET (lock/unlock) to set storage channel
When the power is off, press and hold the SET key for about 3 seconds to automatically enter the temperature calibration interface, press the up and down keys to adjust the temperature, after the adjustment is completed, press the SET key to save and exit
Button state, press and hold the CH1 button for about 3 seconds to turn on/off the buzzer sound
1 x SUGON T36 solder station
1 x Power cable
1 x Solder tip Original JBC
