ZJWY EN-501C New Constant Heating Mobile Phone TAB COG COF COP ACF LCD Repair Green Flex Cable Bonding Machine


820,000

ZJWY EN-501C New Constant Heating Mobile Phone TAB COG COF COP ACF LCD Repair Green Flex Cable Bonding Machine

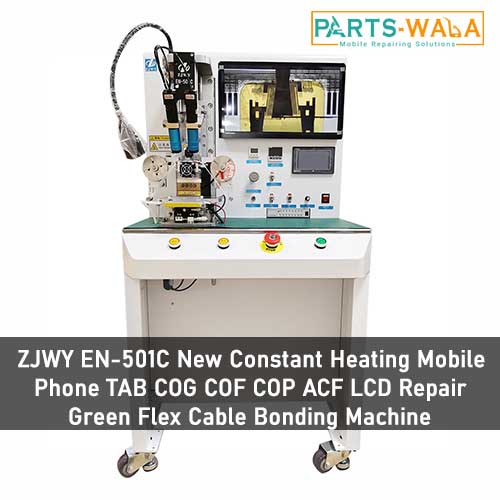

ZJWY new flex cable bonding machine EN-501C

It can bond usual cable, green flex cable, iPhone x series cable, display and touch cable.

Heater

The heater is made of 3μm tungsten steel/ceramic material, with faster heat conduction, high bonding precision and strong stability.

Vacuum absorption platform

LCD flex cable aligning adopts micrometer precision regulation, up, down, left and right alignment, vacuum absorption, not easy to deviate.

HD cameras

Adopt HD cameras, add another 2 megapixel HD CCD, clearer LCD cable image, the up alignment cameras can be customized.

Smart touch screen

4.3 inch smart touch screen, Chinese and English operation interface, automatic manual mode can be switched, simple and convenient!

  • is_customized: YES
  • Model Number: EN-501C
  • Certification: None
  • Package: BOX
  • Application: Mobile phone maintenance
  • Color: White
  • Heater size: 54*1.5mm/64*0.6mm(optional/customizable)
  • Net weight: 125KG
  • Gross weight: 175KG
  • Equipment power: 800W
  • Equipment voltage: AC220V 50/60Hz
  • Working air source: 0.4-0.6Mpa
  • Hot bonding precision: ±5μm
  • Suitable product size: 2.4-7.0inch
  • Working platform size: 180mm*170mm
  • Product size: 640mm*670mm*1285mm
  • Package size: 710mm*840mm*1420mm
