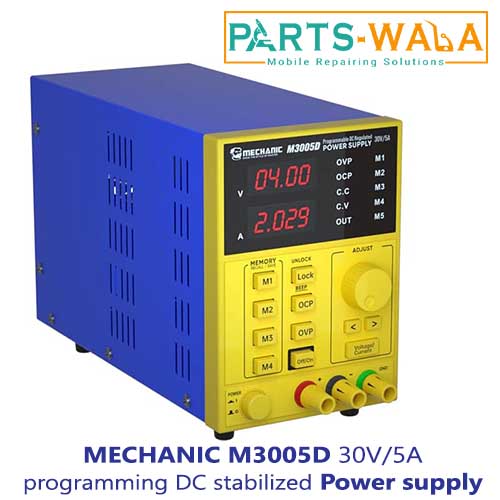

MECHANIC M3005D 30V/5A programming DC stabilized power supply


MECHANIC M3005D 30V/5A programming DC stabilized power supply Multifunctional programmable DC regulated for phone repair tool

M3005D is the adjustable DC power supply station, with dual 4 digit LED displays, 0-30V 0-5A continuously adjustable DC power supply for mobile phone repair.

M3005D DC power supply features precision adjustable current and voltage settings, automatic switching between mA and A display. MECHANIC M3005D 30V 5A Laboratory DC Power Supply Precision Adjustable Power Supply Station Features:

Compact Design with Dual 4 Digit LED Displays and Digital Controls Circuit protection for over load protection, short circuit and over temperature. Automatic switching between mA and A display

Specification : Weight: 4.8 kg

Dimensions (W x H x D): 110 x 260 x 156 mm

Supplied with: laboratory power supply unit, power cable, instructions Mains

voltage: 110 or 230V AC, 50/60 Hz Output voltage: 0 – 30 V DC

Output current: 0 – 5 A Load stabilization :

Voltage: 0.01%+2 mV Current: <0.1%+10 mA Mains stabilization :

Voltage: 0.01%+3 mV Current: <0.1%+3 mA

Resolution setting: 10 mV/1 mA Accuracy (at 25??C +/- 5??C) :

Voltage: 0.5%+20 mV

Current: <0.5%+ 10 mA Residual ripple (20 Hz – 20 MHz) :

Voltage: <2 mV rms Current: <3 mA rms

Display resolution: 10 mV/1 mA Response time (10% load): <100 ms

  • Output Current: 0-30A
  • Model Number: M3005D
  • Output Type: Single
  • Output Power: 101 – 200W
  • Brand name: MECHANIC
  • Model: M3005D
